🤔 Graphing Kiva Data with Altair¶

Although making graphs with the turtle is a good way to learn about a few basics of computer graphics it is definitely not going to encourage you to make lots of graphs to explore your data. Exploring a new pile of data is something that every curious data scientist should want and need to do. There are many many graphing options available for Python programmers including:

  • Matplotlib

  • Seaborn

  • Plotly

  • Bokeh

  • Altair

Altair was designed to work in a browser and makes use of a very powerful concept that we won’t go into here called a grammar of graphics. Its pretty easy to use once you understand a few of the basics. The two key ideas to understand are “marks” and “encodings”

A mark essentially specifies the kind of chart we are going create such as a bar chart or a line graph or a scatter graph. In our version of Altair we support three different kinds of marks:

  • mark_bar() – draw this chart using bars

  • mark_point() – draw this chart using points

  • mark_line() – draw this chart using lines

An encoding allows you to declare links between data columns and “visual encoding channels.” You specify an encoding for a particular mark by passing named parameters to the method. We will get into more detail on named parameters later in the book. For now you can just enjoy the fact that they act link any other parameter but are in some ways easier to deal with because you don’t have to worry about the order, you can just use them in any order by their name.

Some typical encoding channels include:

  • x - what data should be used for the x axis

  • y - what data should be used for the y axis

  • size - what data should be used to set the size of the mark (especially for mark_point)

  • color – what data should be used to color the mark

  • shape – what data should be used to set the shape. Good for when you want to plot several things related columns of data together.

The mark and the encoding work together very well and allow us to create many different kinds of graphs without having to explicitly draw anything! In this way Altair is a declarative graphics package.

Altair assumes that you have data that you can organize into a table of rows and columns where each of the rows represents an observation and each column is something that you can observe or label. The data can be categorized according to several different types. These are bit more high level than the types we have been talking about with Python but you will probably recognize them. They are:

  • Quantitative – quantitative data is any numeric data it might represent a temperature or speed or a gpa.

  • Ordinal – ordinal data is used when the numeric value tells you something about the order of choices. Such as in a survey when you are asked to rank your satisfaction on a scale from 1 to 5

  • Nominal – nominal data is typically used to name things

  • Temporal – temporal data is data about time.

When you tell Altair what data you want to use for the x or y axes you will often want to give it a hint as to what type the data is. It can often infer that for itself but not always. When you do give it a hint you just append a short string to the column name consisting of a colon and the first letter of the data type. for example to tell it that the column category is nominal you should specify the column

The easiest way to learn Altair is through some examples. So let us look at a few.

Bar Charts¶

To make a chart in Altair you have to specify the data that you want to work with, how you want to mark the data, and how you should encode the columns of data with the kind of mark you have chosen.

Lets make a Bar chart. Here is a table of data:

customer

cakes

flavor

Alice

5

chocolate

Bob

9

vanilla

Clair

7

strawberry

Breaking this down line by line:

First we create a representation of the table for altair by calling . Here is an example of using named parameters. Note that the parameter name will become the name of the columns. This example shows you the data printed in tabular form.

Back to the original code:

On line 4 of the program we make a Chart. The chart is the holder of the data that we will mark and encode. You can also give chart an optional parameter to tell it the title of the chart.

On line 5 we tell the chart that it is going to be a bar chart by calling the method

On line 6 we tell the mark the encodings to use. We tell it that the values for the x axis should come from the customer column and to treat them as nominal data. That is great for a bar chart as the columns often do correspond to names. The values for the y axis will come from the cakes column. In a bar chart its natural to think of the values being proportional to the height of the bar. Which is exactly what Altair does for a bar chart. We are also going to color the bars (this is optional) using the value from flavor column.

On line 7 we tell Altair to display the chart.

You Try

  1. Change the values so they are all bigger by a factor of 10. Does the Chart automatically re-scale itself?

  2. Add more data to customer, cakes, and flavor to represent five more rows in the table and redo the graph.

  3. What happens if you change the columns for x and y ?

Did you notice anything interesting? Suppose the additional rows looked like this:

customer

cakes

flavor

Drake

10

chocolate

Emma

82

vanilla

Alice

70

strawberry

Emma

42

chocolate

Ginger

64

strawberry

Can you explain why the graph looks like it does? Just to be sure we are seeing the same thing, here’s the code for the two tables combined below.

Notice that it adds together all of the the rows for the x channel. This is just what you would want to if you wanted to show a total for a particular category. Such as Graph the total amount of money lent in each country. It also further shows the distribution – by color – of another variable within that category. Sometimes this is called a stacked bar chart. Just think of the work you would need to do to replicate this if you had to compute it all yourself and then draw it with a turtle.

Line Graph¶

Lets make a line graph, this is the kind of graph that you would typically see in a math book to graph a function. Let us first make some data to graph using the function $$y = x^2$$ We will graph it over the range of -10 to +10 for the x values.

What we are doing here is calculating the square of the integers from -10 to +10 and storing them in y_vals. You can even print y_vals to see that its just an ordinary list if you want.

On line 8 we make data, just like we did in or previous examples. You may want to add a line to see the data for the chart in its tabular form by adding a line after 8.

On line 10 we tell the chart that the mark will be a line.

One line 11 we tell the chart to use the column named X as the x values and Y as the y values. Notice that we don’t need to tell it what kind of data the columns contain as Altair will infer that both are Quantitative. It doesn’t hurt to add a ‘:Q’ at the end if you want.

You try

  1. Change the mark to instead of

  2. Change the mark to be a – Cool right, its like 3 graphs for the price of one!

  3. Change the data so that instead of calling the columns X and Y you call one and the other

  4. Add a color parameter to the encoding use either X or Y to specify the color value. Don’t give it a type and see how it looks. then specify that you want it to treat the column as nominal ‘:N’ and you will see how the color scheme changes. This gives you a lot of flexibility in how your chart gets colored.

  5. Choose a different function sine, log,

  6. plot $x(t) = 2 cos(t) + sin(t) cos(60t), y(t) = sin(2t) + sin(60t)$ over a range of t values.

  7. The equation for the “Butterfly curve” is Here can you generate the data and use Altair to plot it?

Scatter plot¶

Most often the mark_point option is used to make a scatter graph. Here is a well known data set that contains the measured number of chirps per second along with the temperature at the time the number of chirps were measured. The theory goes that if you are without your thermometer or weather app you can figure out the temperature by counting the number of times per second a nearby cricket chirps. Using the data given make a scatter plot. This is really just like the line plot we did above but using

Histogram¶

Here are 100 IMDB movie ratings. Lets figure out the distribution of these ratings by making a histogram. Do do this we will introduce a couple of new ways to enhance the encoding of our different channels. Recall that in order to make a histogram we divide up the data into bins and count the number of observations that go in each bin. We can tell Altair that we want our axis to be a binned axis but to do that requires more than just giving it the name. So we have an Axis object that we can use to help communicate this additional information. takes a parameter to specify the name of the column in the table to use and takes an option parameter that tells altair to group the data into bins. Now what about the y axis? Since we want the y value to represent the number of things in the bin we need to have altair count them. Altair supports a number of aggregation functions to help summarize groups of data. In the case of binned data we make the y axis a string of ‘count()’ Technically we don’t need an axis object to tell Altair to use count we could simply say

A few words of explanation for the bar chart may make it clearer what is going on here.

Hopefully everything up to line 8 will look pretty similar to you. but on 8 we are have to get a bit more fancy with our encoding. We are telling Altair that our X axis is going to use the ratings data and we are adding the ‘:Q’ to be sure it knows that it is quantitative. You can remove the :Q and it will still work fine. The key to making the histogram is to tell Altair that we are going to put the X data into bins. Just like you did in the last project, but you don’t have to calculate it this time, Altair will do the work.

On line 9 we tell Altair that the y values will be the of the things that are in the bins. If you specify a function like count you are telling it how to aggregate the values on the other axis.

You Try

  1. What happens if you remove the ?

  2. What happens if you switch the x and y axes?

Kiva Graphs Revisited¶

The final step for this lab is to recreate the three graphs we made with the turtle for the Kiva data. You should refer back to the examples we just worked through to help you figure out what to do.

Make a scatter plot of the number of donors versus the time to raise the money for the loan. Make the size of the circle correspond to the loan amount. Make the color corresponds to the country.

Make a bar chart that shows the total amount of money loaned in each country.

Make a bar chart that shows the number of loans in each country.

Make a histogram that shows the distribution of the loan amounts.

Creative Commons License
This work is licensed under a Creative Commons Attribution-ShareAlike 4.0 International License.

Post Project Questions

    During this project I was primarily in my...
  • 1. Comfort Zone
  • 2. Learning Zone
  • 3. Panic Zone
    Completing this project took...
  • 1. Very little time
  • 2. A reasonable amount of time
  • 3. More time than is reasonable
    Based on my own interests and needs, the things taught in this project...
  • 1. Don't seem worth learning
  • 2. May be worth learning
  • 3. Are definitely worth learning
    For me to master the things taught in this project feels...
  • 1. Definitely within reach
  • 2. Within reach if I try my hardest
  • 3. Out of reach no matter how hard I try
You have attempted of activities on this page
Sours: https://runestone.academy/runestone/books/published/fopp/Projects/graphing_with_altair.html

altair-viz / altair Public

Hello, Happy New Year
I want to add a couple of vertical lines to my chart but I don't know how could you please help me?
vertical lines for two different date e.x: for Dec 09 and Dec 20

How I increase the resolution of the chart image?
when I download chart image they don't have quality

Code :

highlight=alt.selection( type='single', on='mouseover', fields=['DOY'], nearest=True) base=alt.Chart(NO2).encode( x=alt.X('monthdate(Timestamp):Q', title='Date'), y=alt.Y('mean(T_NO2):Q', title='NO2 Khorasan (mol/m^2)'), color=alt.Color('Year:O', scale=alt.Scale(scheme='magma'))) points=base.mark_circle().encode( opacity=alt.value(0), tooltip=[ alt.Tooltip('Month:O', title='Month'), alt.Tooltip('DOY:Q', title='DOY'), alt.Tooltip('T_NO2:Q', title='NO2') ]).add_selection(highlight) lines=base.mark_line().encode( size=alt.condition(~highlight, alt.value(3), alt.value(3))) rule1=base.mark_rule(color='red').encode( x={'Timestamp': "2020-11-09"}, size=alt.value(5) ) rule2=base.mark_rule(color='orange').encode( x={'Timestamp': "2020-11-20"}, size=alt.value(5), ) (points+lines).properties(width=600, height=350).interactive()

Untitled

visualization

Sours: https://github.com/altair-viz/altair/issues/2379
  1. Unique woodworking projects
  2. Ryan mcmahon stats
  3. Mccoys minneapolis
  4. Sccm boot image
  5. Trussville veterinarian

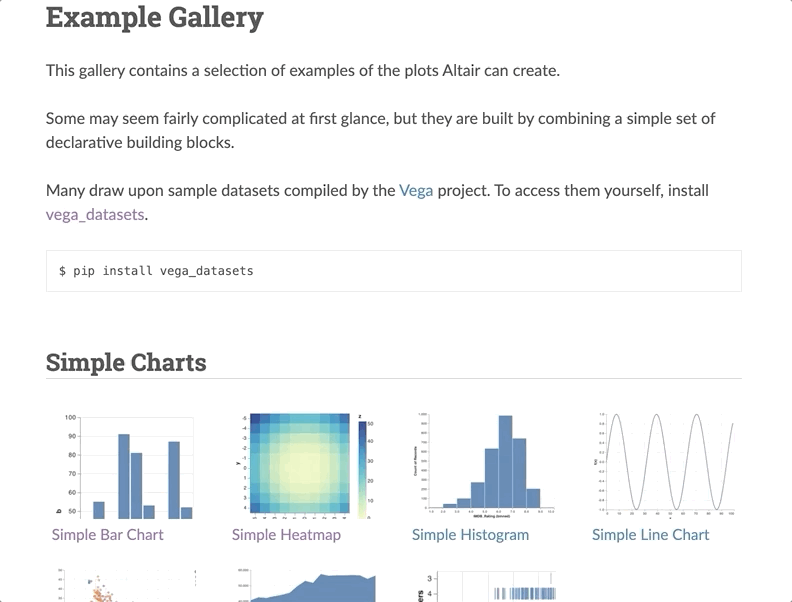

Create Stunning Visualizations with Altair

Have you ever gotten frustrated after looking at your visualization in Python? Have you ever thought that it can be done better with less effort and time? If so, this post is perfect for you because I would like to share about the Altair library, which will boost your productivity and make your visualisations more appealing.

I suppose you already know how visualizationis vital for any analysis and how it helps convey and translate an idea to a wider audience. Also, visualizing data is one of the first steps to explore it and understand where to dig deeper. Therefore, I would like to focus on the basic grammar of Altair using a scatter plot and then share with you some examples of various graphs. Before that, let us talk about Altair and get to know why it is so powerful.

Altair is a declarative statistical visualization library, which uses Vega and Vega-Lite grammars that help to describe the visual appearance and interactive behaviour of a visualization in a JSON format.

The key idea behind Altair that you are declaring links between data columns and visual encoding channels (e.g., x and y axes, colour, size, etc.) and the rest of the visualization process is handled by the library. Thus, it gives you more time to focus on data and analysis rather than explaining how to visualize data [1].

Altair's components

  1. Data: DataFrame used for visualization

2. Mark: How would you like the data to be visualized (line, bar, tick, point)?

3. Encoding: How the data will be represented (positions for x and y, colour, size)?

4. Transform: How would you like to transform the data before applying visualization (aggregate, fold, filter, etc.)?

5. Scale: Function for inputting and rendering data on the screen

6. Guide: Visual aids such as legend, ticks on the x and y axes.

As for the mark component, you can use the following basic mark properties:

Let us get our hands dirty and learn Altair's grammar using a scatter plot.

Installation

$ pip install altair vega_datasets

The equivalent for conda is

$ conda install -c conda-forge altair vega_datasets

Data

I will be using the following Vega datasets:

  1. data.gapminder()
  2. data.stocks()
  3. data.movies()

Let's import packages and look at the data

import pandas as pd
import altair as alt
from vega_datasets import data

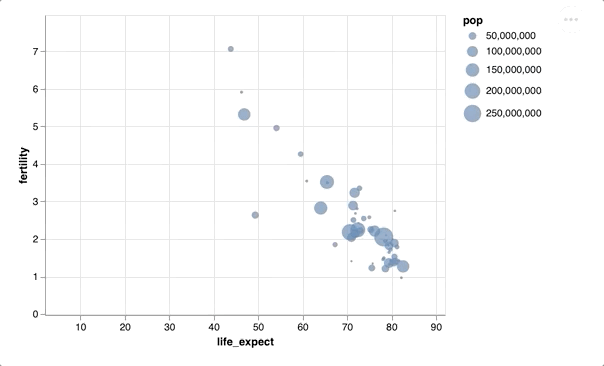

Step 1: Simple scatter plot

Chart() is a fundamental object in Altair, which accepts a single argument — a DataFrame. Let us look at a simple scatter plot using Chart(), mark_point() and encode() objects.

alt.Chart(df_gm_2005).mark_point().encode(
alt.X(‘life_expect’),
alt.Y(‘fertility’))

Step 2: Adding interactiveness

By adding interactive() object to a scatter plot we can make it interactive. Also, let us define the size of the bubbles with alt.Size() to add more information to the plot.

alt.Chart(df_gm_2005).mark_point(filled=True).encode(
alt.X(‘life_expect’),
alt.Y(‘fertility’),
alt.Size(‘pop’)
).interactive()

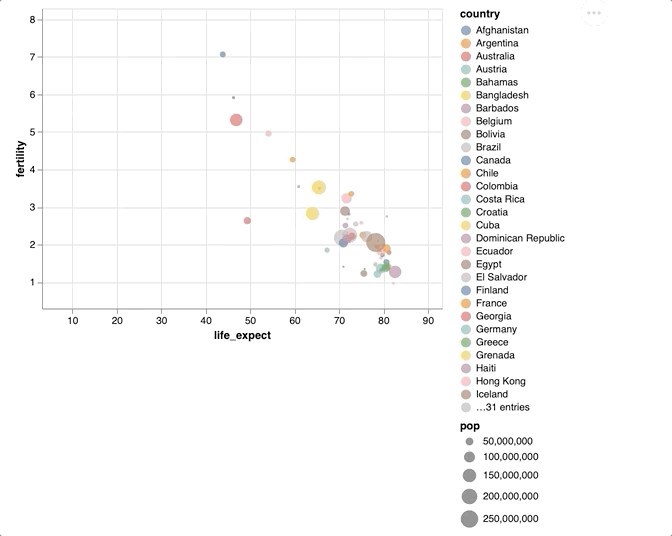

Step 3: Adding colour

We can change the colour of the bubbles by adding alt.Color() in encode() object. It is great that we do not need to worry about each colour for each country because Altair does it for you.

alt.Chart(df_gm_2005).mark_point(filled=True).encode(
alt.X(‘life_expect’),
alt.Y(‘fertility’),
alt.Size(‘pop’),
alt.Color(‘country’),
alt.OpacityValue(0.7)
).interactive()

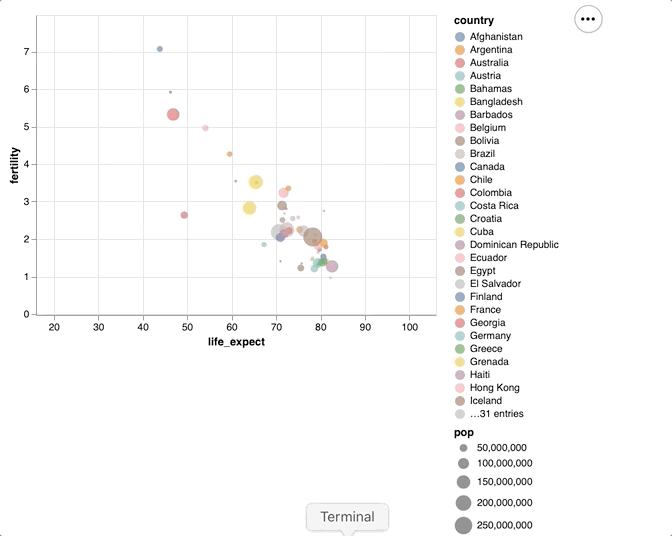

Step 4: Adding more information

We can add information to each dot by specifying Tooltip() in encode().

alt.Chart(df_gm_2005).mark_point(filled=True).encode(
alt.X(‘life_expect’),
alt.Y(‘fertility’),
alt.Size(‘pop’),
alt.Color(‘country’),
alt.OpacityValue(0.7),
tooltip = [alt.Tooltip(‘country’),
alt.Tooltip(‘fertility’),
alt.Tooltip(‘life_expect’),
alt.Tooltip(‘pop’),
alt.Tooltip(‘year’)]
).interactive()

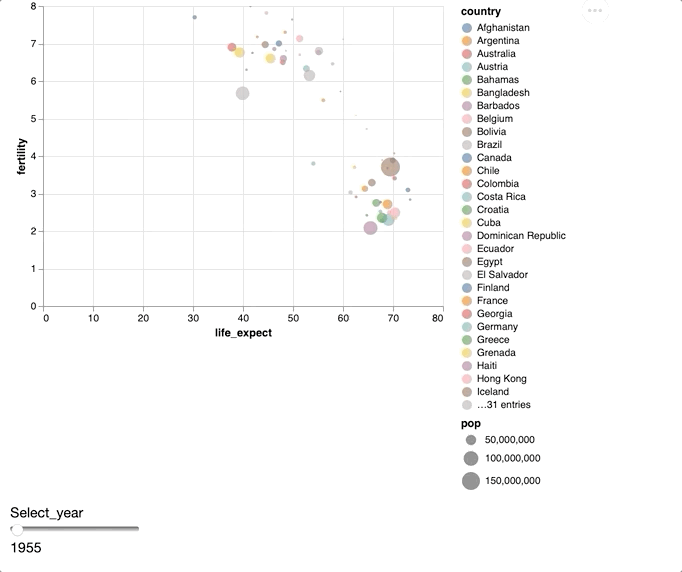

Step 5: Making plot dynamic

Already looks amazing for the 2005 year’s data. Let’s add a bar to change the data and make the plot dynamic.

select_year = alt.selection_single(
name=’Select’, fields=[‘year’], init={‘year’: 1955},
bind=alt.binding_range(min=1955, max=2005, step=5)
)alt.Chart(df_gm).mark_point(filled=True).encode(
alt.X(‘life_expect’),
alt.Y(‘fertility’),
alt.Size(‘pop’),
alt.Color(‘country’),
alt.OpacityValue(0.7),
tooltip = [alt.Tooltip(‘country’),
alt.Tooltip(‘fertility’),
alt.Tooltip(‘life_expect’),
alt.Tooltip(‘pop’),
alt.Tooltip(‘year’)]
).add_selection(select_year).transform_filter(select_year).interactive()

Step 6: Changing the size and adding a title

Lastly, let us change the size of the plot and add a title

select_year = alt.selection_single(
name=’Select’, fields=[‘year’], init={‘year’: 1955},
bind=alt.binding_range(min=1955, max=2005, step=5)
)scatter_plot = alt.Chart(df_gm).mark_point(filled=True).encode(
alt.X(‘life_expect’),
alt.Y(‘fertility’),
alt.Size(‘pop’),
alt.Color(‘country’),
alt.OpacityValue(0.7),
tooltip = [alt.Tooltip(‘country’),
alt.Tooltip(‘fertility’),
alt.Tooltip(‘life_expect’),
alt.Tooltip(‘pop’),
alt.Tooltip(‘year’)]
).properties(
width=500,
height=500,
title=”Relationship between fertility and life expectancy for various countries by year”
).add_selection(select_year).transform_filter(select_year).interactive()scatter_plot.configure_title(
fontSize=16,
font=”Arial”,
anchor=”middle”,
color=”gray”)

The final output looks great and we can derive various insights from such a sophisticated visualization.

Now, knowing the basics of Altair's grammar, let us look at some other plots.

Box plot

box_plot = alt.Chart(df_gm_2005).mark_boxplot(size=100, extent=0.5).encode(
y=alt.Y(‘life_expect’, scale=alt.Scale(zero=False))
).properties(
width=400,
height=400,
title=”Distribution of life expectancy for various countries in 2005 year”
).configure_axis(
labelFontSize=14,
titleFontSize=14
).configure_mark(
opacity=0.6,
color=’darkmagenta’
)box_plot.configure_title(
fontSize=16,
font=”Arial”,
anchor=”middle”,
color=”gray”)

Histogram

histogram = alt.Chart(df_gm_2005).mark_bar().encode(
alt.X(“life_expect”, bin=alt.Bin(extent=[0, 100], step=10)),
y=”count()”
).properties(
width=400,
height=300,
title=”Distribution of population for various countries in 2005 year”
).configure_axis(
labelFontSize=14,
titleFontSize=14
).configure_mark(
opacity=0.5,
color=’royalblue’
)histogram.configure_title(
fontSize=16,
font=”Arial”,
anchor=”middle”,
color=”gray”)

Bar chart

bar_chart = alt.Chart(df_gm_ir).mark_bar(color=’seagreen’,
opacity=0.6
).encode(
x=’pop:Q’,
y=”year:O”
).properties(
width=400,
height=400,
title=”Population of Ireland”
)text = bar_chart.mark_text(
align=’left’,
baseline=’middle’,
dx=3
).encode(
text=’pop:Q’
)bar_chart + text

Line chart

line_chart = alt.Chart(df_stocks).mark_line().encode(
x=’date’,
y=’price’,
color=’symbol’
).properties(
width=400,
height=300,
title=”Daily closing stock prices”
)line_chart.configure_title(
fontSize=16,
font=”Arial”,
anchor=”middle”,
color=”gray”)

Multiple scatter plots

mult_scatter_plots = alt.Chart(df_movies).mark_circle().encode(
alt.X(alt.repeat(“column”), type=’quantitative’),
alt.Y(alt.repeat(“row”), type=’quantitative’),
color=’Major_Genre:N’
).properties(
width=150,
height=150
).repeat(
row=[‘US_Gross’, ‘Worldwide_Gross’, ‘IMDB_Rating’],
column=[‘US_Gross’, ‘Worldwide_Gross’, ‘IMDB_Rating’]
).interactive()mult_scatter_plots

Altair is a great tool to boost your productivity in visualizing data, where you only need to specify links between data and visual encoding channels. This allows you to put your thoughts directly to a plot without worrying about the time consuming "how" part.

For more details please find

Thanks for reading and please do comment below about your ideas on visualizing data with Altair. To see more posts from me, please subscribe to Medium and LinkedIn.
